1.5m Heavy Duty 100A 2-AWG Copper Fused Battery Cable

1.5m Ultra Heavy Duty 2 AWG Copper Battery Cable Kit - 100A MIDI Fuse & M10 Lugs

Maximize the efficiency of your electrical setup with this ultra heavy-duty 2 AWG power cable assembly. Unlike thinner cables that suffer from voltage drop, this pure copper 2 AWG loom ensures your equipment gets the full power it needs.

It comes pre-terminated and fully assembled, making it the perfect "plug and play" solution for high-performance dual battery systems, inverters, and serious off-road builds.

Key Specifications:

• Cable Gauge: 2 AWG (Approx. 35mm² Cross Section).

  • Heavy-duty copper core ensures minimal voltage drop and maximum conductivity.

• Total Length: 1.5 Metres.

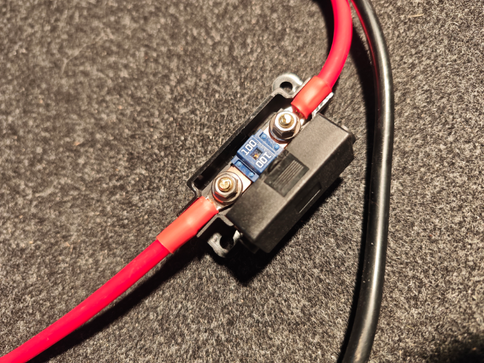

• Circuit Protection: Includes a 100A MIDI Fuse in a secure holder.

  • Note: The 2 AWG cable is capable of handling higher loads, but the system is fused at 100A for optimal safety and equipment protection.

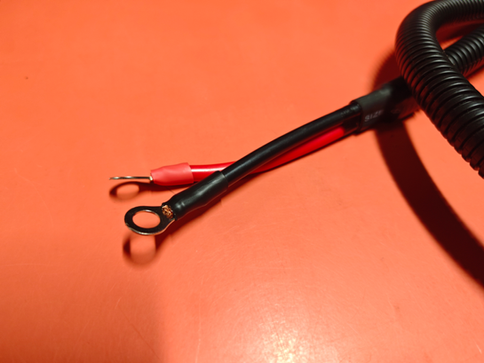

• Terminals: Heavy-duty M10 (10mm) Eyelets crimped on both ends.

• Durability: Full split-conduit sheathing protects the copper cabling from heat, oil, and abrasion.

Ideal Applications:

This loom is designed for setups requiring stable voltage and high reliability. The combination of thick 2 AWG copper and 100A protection makes it perfect for:

• 1000W - 1200W Power Inverters: The "sweet spot" for this cable. The 2 AWG wire ensures your inverter receives full voltage without overheating, while the 100A fuse provides critical safety coverage.

• High-Output DC-DC Chargers: Perfect for connecting your main battery to a 40A, 50A, or 60A DC-DC charger. The 1.5m length is ideal for firewall or fender-mounted units.

• Under-Bonnet Dual Battery Links: Connect your Starter Battery to a nearby Auxiliary Battery with confidence.

• Marine & Caravan Main Power: Excellent for acting as a "main trunk" line to connect your battery bank to a 12V distribution panel or fuse block.

     suitability

Note:

• NOT for Winches: Most 4x4 winches draw 300A–500A and will blow the 100A fuse immediately.

• NOT for Starter Motors: This cable is not designed to carry main cranking current.

• NOT for Large Inverters: Inverters rated 2000W or higher require significantly more amperage than 100A.
